Introducing the all-new PB224 - an ideal match for any condenser microphone, capable of powering even the most high-current draw microphones. Experience a complete redesign in voltage supply circuits, delivering a rock-solid 48 volts of pristine phantom power. With its enhanced molded plastic battery compartment, accommodating two 9 Volt alkaline batteries, the PB224 ensures reliable operation. Alternatively, you can still power it using the Rolls PS27 AC adapter. Trust the PB224 to elevate your microphone performance to new heights with its superior power capabilities and enhanced features.

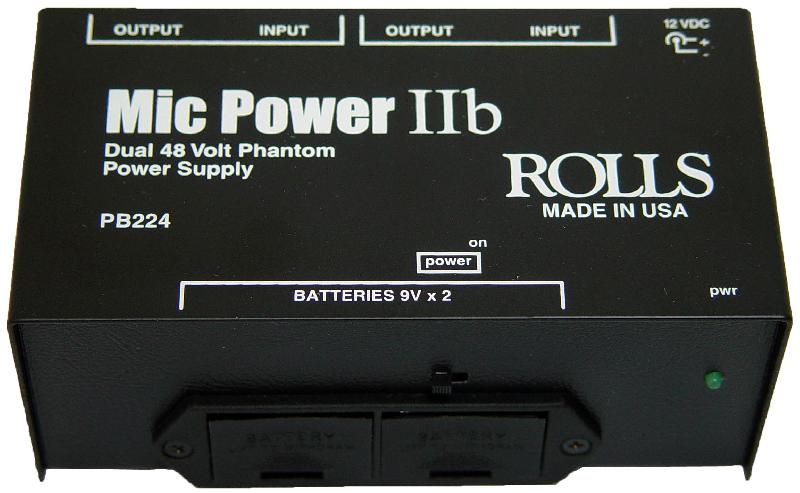

PB224 Dual Phantom Plus
- Description
- Specifications
- Phantom Voltage: 48V
- Connectors: 2: Male XLR, 2: Female XLR, 1: 5mm DC input jack
- Power Input: 2 - 9V Alkaline Batteries, or 12 - 18 VCD (Rolls PS27)
- Current drain 40ma nominal one mic 15vdc
- Size: 5.5" x 2.7" x 1.75"
- Weight: 2 lb (.9 Kg)
- Power condenser microphones requiring phantom power
- Operates on two 9 Volt alkaline batteries, or the included Rolls PS27 12VDC adapter
- High frequency switching power supply to eliminate noise
- Utilizes a switching regulator for stable voltage performance
